COME AND GET A BEST PRICE
Typical Chloride Deposition Rates

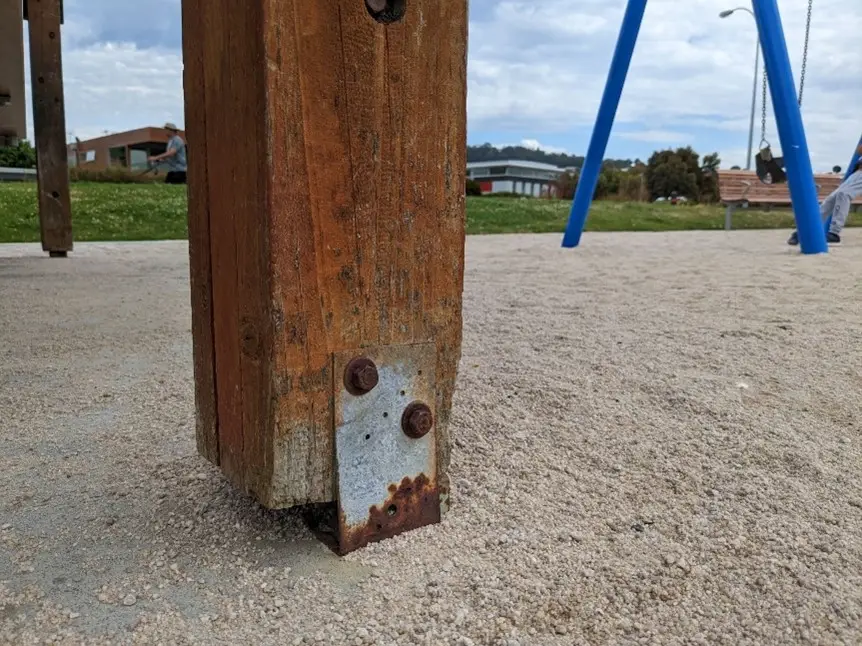

The actual lifespan of 304 stainless steel in coastal areas is primarily determined by the concentration of airborne chloride ions and the frequency of surface maintenance, which can cause this standard grade to degrade much faster than in inland environments.
In coastal regions, the primary antagonist is the Chloride Ion (Cl-). These ions are small and highly aggressive. They penetrate the microscopic imperfections in the chromium oxide passive layer of the steel. Once the layer is breached, an electrochemical cell forms: the small pit acts as the anode, while the surrounding protected surface acts as the cathode, leading to rapid localized metal loss. Chloride ions penetrate the passive oxide layer on stainless steel, causing pitting corrosion, which is the main failure mode in 304 stainless steel.
Corrosion Rates by Distance
The lifespan of 304 stainless steel is not uniform across a "coastal" area; it is a function of distance from the high-tide mark. Environmental data suggests that chloride concentration drops exponentially as you move inland.
Corrosion Rate Estimates (ISO 9223)
Based on atmospheric exposure tests, we can categorize the expected lifespan based on distance from the salt source:
| Distance from Coast | Chloride Deposition Rate(mg/m²/day) | Estimated Aesthetic Lifespan (304) | Estimated Structural Lifespan |
| 0 – 500 meters | >300 | 1 – 3 years | 15 – 25 years |
| 500m – 2 km | 60–300 | 3 – 10 years | 40 – 60 years |
| 2 km – 10 km | 3–60 | 15 – 30 years | 80+ years |
| >10 km (Inland) | Negligible | 50+ years | 100+ years |
Corrosion Mechanism of 304 in Coastal Areas
304 stainless steel contains:
- Chromium: 18–20%
- Nickel: 8–10.5%
- No molybdenum (Mo)
Without molybdenum, its resistance to chloride attack is limited.
Key Corrosion Behavior
- Passive film breakdown occurs at localized sites
- Chloride ions initiate pits (0.01–0.1 mm)
- Pits grow over time and may lead to visible rust
Critical chloride threshold for pitting:
- ~200–300 ppm Cl⁻ (environment dependent)
304 vs 316L in Coastal Areas
For many projects, the question isn't just "how long will 304 last," but "is 316 worth the 30% price premium?"
Pitting Resistance Equivalent Number (PREN)
We use the PREN formula to quantify the difference:
PREN = Cr% + 3.3 ×Mo% + 16 ×N%
- Grade 304 PREN: ~18.0 - 19.0
- Grade 316 PREN: ~23.0 - 25.0
The main difference is molybdenum content
|
Property |
304 |
316L |
|
Molybdenum |
0% |
2–3% |
|
PREN Value |
~18–19 |
~23–26 |
|
Pitting Resistance |
Moderate |
High |
|
Coastal Lifespan (<100 m) |
1–5 years |
10–20+ years |
Molybdenum improves resistance to chloride-induced pitting. Because Grade 316 contains 2% to 3% Molybdenum, it is roughly 4 to 5 times more resistant to pitting in saline environments. In a "critical zone" (within 1km of the ocean), 316 is almost always the more cost-effective choice over a 20-year lifecycle when maintenance costs are factored in.
Impact of Surface Finish on Lifespan
Surface roughness significantly affects corrosion resistance.
| Finish | Roughness (Ra) | Coastal Performance |
| Mirror (8K) | ≤0.2 μm | Best |
| 2B | ~0.3–0.5 μm | Moderate |
| Hairline (HL) | ~0.5–1.0 μm | Lower |
| Bead Blasted | ≥1.0 μm | Poor |
Why Rough Surfaces Fail Faster
- Trap chloride deposits
- Reduce rinsing efficiency
- Increase localized corrosion
Effect of Maintenance on Lifespan
Cleaning frequency has a major impact.
Maintenance vs Lifespan
| Cleaning Frequency | Lifespan Increase |
| No cleaning | Baseline |
| Every 6 months | +30–50% |
| Every 3 months | +50–80% |
| Monthly cleaning | +100% or more |
Simple freshwater washing removes chloride deposits and slows corrosion.
The Variable That Doubles Lifespan
The "actual lifespan" is a moving target because it depends on human intervention. Stainless steel is often marketed as "maintenance-free," but in coastal zones, this is a myth.
The "Rain Washing" Effect
Data from the International Stainless Steel Forum (ISSF) indicates that surfaces exposed to natural rain last significantly longer than "sheltered" surfaces (like the underside of a balcony). Sheltered areas allow salt to concentrate through evaporation without ever being rinsed.
Lifespan Extension through Cleaning:
- Zero Cleaning: Heavy pitting and brown staining within 2 years.
- Bi-annual Rinsing: Maintains structural integrity; aesthetic staining delayed to 5-7 years.
- Quarterly Professional Cleaning: Can extend the "new look" of 304 stainless steel to 15+ years even in high-chloride zones.
Architectural Failures
In a 2022 survey of coastal structures, it was found that 304 stainless steel handrails installed within 200 meters of the shoreline in a tropical climate reached an "unacceptable aesthetic state" (more than 10% surface staining) in just 14 months.
Conversely, the same grade of steel used for window frames 3 km inland in a temperate coastal city showed no signs of degradation after 12 years. This highlights the danger of using a "one size fits all" specification for stainless steel.
Conclusion
The actual lifespan of 304 stainless steel in coastal areas is highly variable, but the data is clear: if you are within 5 kilometers of the sea, Grade 304 should be treated as a material that requires a strict maintenance schedule or a high-quality protective coating.
For structural or high-visibility projects within the 0-2 km "Salt Zone," the data suggests that upgrading to Grade 316L or using a specialized surface finish is the only way to guarantee a lifespan exceeding 20 years without significant aesthetic decay. In the maritime battle against chlorides, the "cheaper" material often becomes the most expensive over time.
READY TO GET A QUOTE
Post time: Mar-19-2026
