Introduction
The "L grade" in stainless steel specifications denotes a low-carbon version of standard austenitic alloys, specifically designed to mitigate the risks of intergranular corrosion during welding and high-temperature fabrication.
The Chemistry Behind the "L"
In the world of metallurgy, the difference between a standard grade (like 304) and its low-carbon counterpart (304L) is subtle yet profound. The primary identifier for an L-grade is a maximum carbon content of 0.03% or lower, whereas standard grades typically allow up to 0.08%.
Why Carbon Content Matters: The "Sensitization" Problem
When stainless steel is heated during welding (typically between 425°C and 815°C), the carbon in the alloy reacts with the chromium. This reaction creates chromium carbides that precipitate at the grain boundaries. This phenomenon is known as "sensitization."
When chromium is tied up in these carbides, it is no longer available to form the protective, passive oxide layer that keeps the steel corrosion-resistant. This leaves the grain boundaries vulnerable to attack, a process called intergranular corrosion.
Quantitative Comparison: Standard vs. L-Grade
To understand the impact of these chemistry shifts, we must look at the specific compositional limits defined by ASTM standards.
| Element | Standard 304 | 304L (Low Carbon) |
| Carbon (Max) | 0.08% | 0.03% |
| Chromium | 18.0 - 20.0% | 18.0 - 20.0% |
| Nickel | 8.0 - 10.5% | 8.0 - 12.0% |
| Manganese | 2.0% (Max) | 2.0% (Max) |
By capping the carbon at 0.03%, the metallurgy prevents the formation of chromium carbides, effectively eliminating the risk of sensitization. This allows for welding or stress-relief annealing without the need for post-weld solution annealing, which can be logistically impossible for large structural components.
Mechanical Properties
It is a common misconception that L-grades are inherently weaker. While lower carbon content does result in a slight reduction in tensile strength, it is often negligible.
| Property | Standard 304 | 304L (Low Carbon) |
| Yield Strength | ~215MPa | ~170MPa |
| Tensile Strength | ~505MPa | ~485MPa |
| Elongation | ~40% | ~45% |
However, to compensate for this, many producers manufacture "Dual Certified" steel. By carefully controlling nitrogen levels (which strengthens the matrix), many manufacturers produce material that meets both the standard and the L-grade specifications. If you see a material labeled 304/304L, you are getting the welding safety of the L-grade with the high-strength profile of the standard grade.
When to Choose L-Grade vs. Standard
The decision to switch to an L-grade is driven by three main factors:

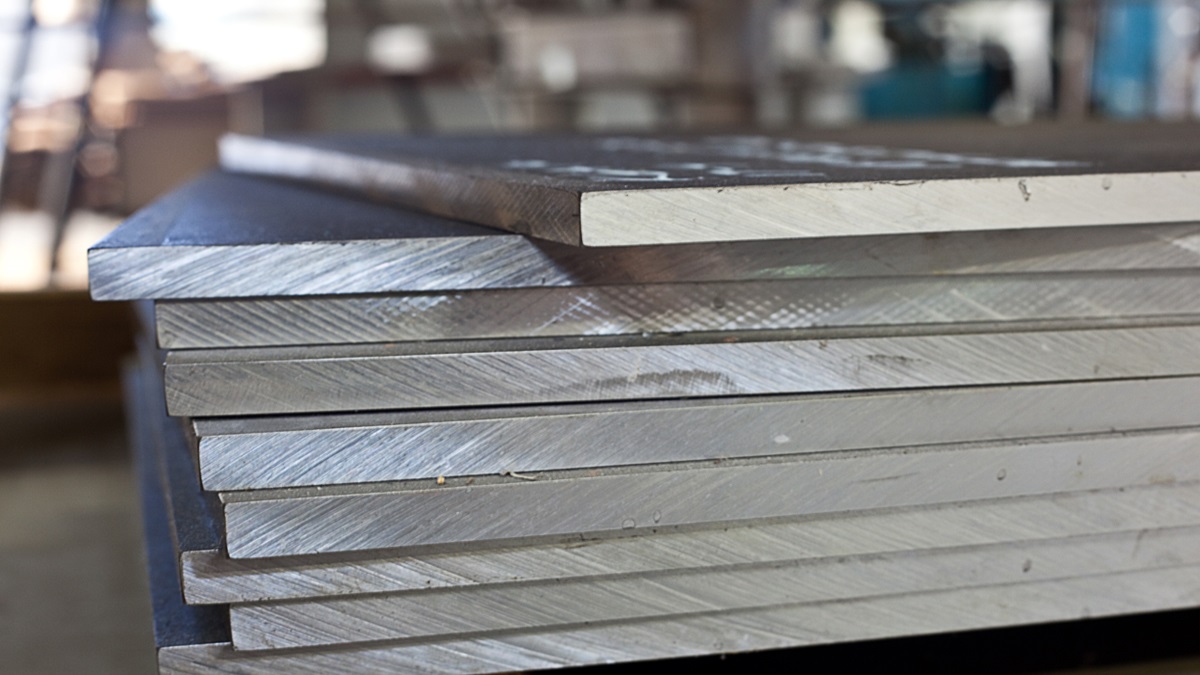

- Thickness: If you are welding plates thicker than 6mm, L-grade is standard industry practice.
- Environment: If the application is highly corrosive (e.g., chemical processing, marine environments), the risk of intergranular corrosion is amplified. Even minor sensitization can lead to leaks.
- Post-Weld Heat Treatment: If you cannot perform a full solution anneal after fabrication, you must use an L-grade or a stabilized grade like 321 (which contains Titanium).
Can L Grades Replace Standard Grades?
In most cases, L grades can replace standard grades without problems.
For example:
- 304L can replace 304
- 316L can replace 316
Many manufacturers now supply dual-certified materials such as:
304 / 304L dual grade
This means the material meets both standards simultaneously.
Weldability Advantages of L Grades
One of the main reasons L grades are widely used is improved weldability.
Advantages include:
- Lower risk of weld decay
- Reduced sensitization
- No need for solution annealing after welding
- Lower chance of grain boundary corrosion
This is particularly important for:
- Large welded structures
- Pressure vessels
- Chemical storage tanks
- Pipeline systems
For example, 316L is the most commonly specified stainless steel for welded piping in corrosive environments.
Common L Grade Stainless Steels
304L Stainless Steel
Composition (typical):
- Chromium: 18–20%
- Nickel: 8–12%
- Carbon: ≤0.03%
Applications:
- Architectural panels
- Kitchen equipment
- Storage tanks
- Decorative stainless steel sheets
316L Stainless Steel
Composition:
- Chromium: 16–18%
- Nickel: 10–14%
- Molybdenum: 2–3%
- Carbon: ≤0.03%
Benefits:
- Higher corrosion resistance
- Improved chloride resistance
Applications:
- Marine equipment
- Coastal architecture
- Chemical processing
- Pharmaceutical equipment
410L Stainless Steel
A ferritic low-carbon stainless steel with good formability.
Typical uses include:
- Automotive exhaust systems
- Structural components
- Decorative applications
A Note on Stabilized Grades (321 and 347)
While L-grades solve the problem by removing carbon, stabilized grades like 321 (containing Titanium) and 347 (containing Niobium) solve it by "locking" the carbon. These elements have a higher affinity for carbon than chromium does. They form carbides preferentially, leaving the chromium free to protect the steel.
For extremely high-temperature service environments (above 500°C), stabilized grades are often preferred over L-grades, as L-grades lack the high-temperature creep strength provided by the carbide-forming elements.
L Grade vs Stabilized Grades (321 / 347)
Another solution to sensitization is stabilized stainless steel.
Comparison:
| Type | Strategy |
| L Grades | Reduce carbon |
| Stabilized Grades | Add carbide-forming elements |
However, L grades are usually preferred because they:
- Are easier to produce
- Cost less than stabilized grades
- Provide sufficient corrosion resistance for most applications
Conclusion
Understanding what the L grade means is essential for anyone involved in the fabrication of stainless steel. It is a precise metallurgical adjustment—reducing carbon to below 0.03%—that provides a robust shield against the specific dangers of welding.
When you choose 304L or 316L, you aren't just buying "a different alloy"; you are buying insurance against the invisible, slow-creeping damage of intergranular corrosion. For most manufacturing and structural applications, the L-grade offers the best balance of corrosion resistance, weldability, and mechanical utility.
