Protective Film Types for Stainless Steel Sheets Explained
Protective film types for stainless steel sheets play a critical role in preventing surface damage, preserving decorative finishes, and ensuring product quality during fabrication, transport, and installation.
Why Protective Films Are Essential for Stainless Steel Sheets
Stainless steel, while durable, is notoriously susceptible to "mechanical trauma." During the fabrication process—such as laser cutting, bending, or stamping—the surface can easily be marred by metal-to-metal contact, dust, or handling errors.
Without a protective layer, you risk:
- Surface Scratches: Reducing the aesthetic value of polished (No. 4, BA, or Mirror) finishes.
- Contamination: Metal shavings or chemical residues embedding into the surface, which can initiate localized corrosion (pitting).
- Increased Rework Costs: Scrap rates soar when the surface finish is compromised during processing.
Anatomy of a Protective Film
A protective film is not just a simple sticker; it is a sophisticated, multi-layer composite. To understand how to choose one, you must understand its anatomy:
1.Carrier/Backing: Usually made of polyethylene (PE), this provides the physical barrier. It determines the film's thickness, tear resistance, and UV stability.
2.Adhesive System: This is the "heart" of the product. The adhesive determines how the film sticks, how long it stays, and—most importantly—how cleanly it removes without leaving residue.
Types of Protective Film for Stainless Steel Sheets
The industry categorizes these films primarily by their adhesive strength and processing compatibility.
A. The Adhesive Categories
| Adhesive Type | Characteristics | Best For |
| Low Tack | Easy to peel, low adhesion level. | Polished surfaces, short-term protection. |
| Medium Tack | Balanced adhesion and resistance. | Standard fabrication (bending, folding). |
| High Tack | Strong grip, high resistance to stress. | Deep drawing, heavy-duty processing. |
B. Based on Material Composition (PE Film Variations)
1. PE (Polyethylene) Protective Film
Most commonly used protective film type for stainless steel sheets. These films are versatile and cost-effective. They come in various colors—typically clear, black/white (for UV protection), or blue.
Key Data:
- Thickness range: 30–100 microns
- Elongation at break: 200–500%
- Temperature resistance: -20°C to 60°C
- UV resistance: 1–6 months (standard grade)
Advantages:
- Cost-effective
- Good flexibility
- Easy to apply and remove
- Suitable for mirror, 2B, HL finishes
Limitations:
- Limited UV durability
- Adhesion strength may decrease over time
PE films are ideal for indoor projects and short-term protection.
2. PVC (Polyvinyl Chloride) Protective Film
PVC films offer higher durability and stronger adhesion.
Key Data:
- Thickness range: 70–150 microns
- Elongation: 150–300%
- UV resistance: up to 12 months
- Higher puncture resistance than PE
Advantages:
- Strong surface grip
- Suitable for textured and embossed sheets
- Better impact resistance
Limitations:
- Higher cost
- Heavier material
- Harder removal in cold climates

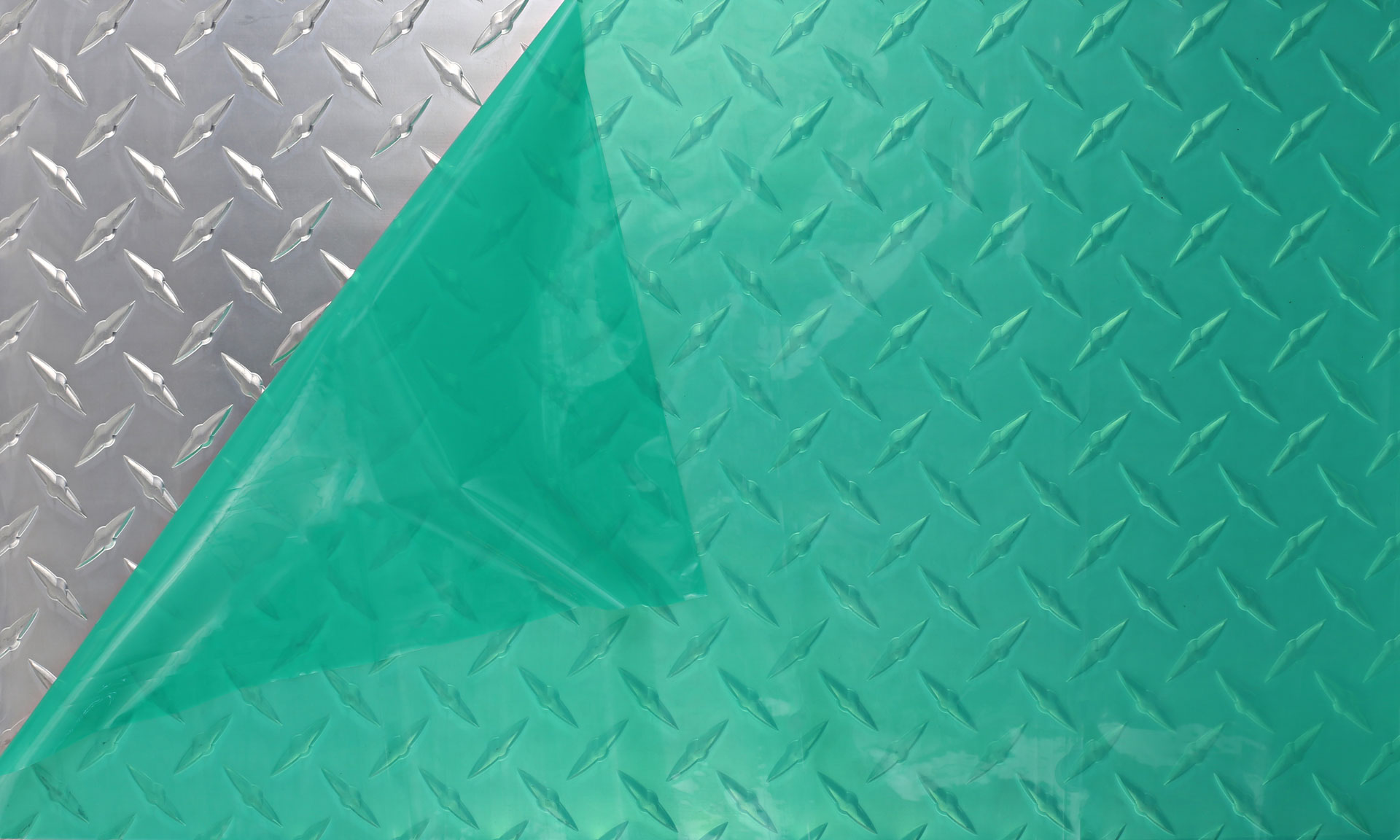

PVC films are often used for embossed or water ripple stainless steel panels.
3. Laser-Cut Specific Films
Not all films are laser-friendly. Standard films may bubble or release toxic fumes when subjected to a high-energy laser beam. Laser-specific films have a specialized coating that absorbs the energy without melting or peeling back from the cut line.
Laser-cut specific films are engineered for stainless steel sheets that will undergo fiber or CO₂ laser cutting, offering improved heat stability and edge adhesion.
Key Data:
- Thickness range: 60–120 microns
- Elongation: 200–400%
- Short-term heat resistance: 90–130°C
- Adhesion level: 5–10 N / 25 mm (medium to medium-high tack)
- Edge lift after cutting: typically ≤1 mm
Advantages:
- Resistant to edge lifting during laser cutting
- Reduced adhesive residue near cut edges
- Better tolerance to spatter and heat exposure
- Suitable for mirror, hairline, and textured stainless steel sheets
Limitations:
- Shorter recommended removal window (usually within 30 days after cutting)
- Slightly higher cost than standard PE film
- Not necessary for sheets without thermal processing
How to Select the Right Film: A Decision Framework
Choosing the "right" film depends on your specific Stainless Steel Finish and Processing Method.
Consider Your Surface Finish
- BA (Bright Annealed) / Mirror Finish: These require Low Tack films. High tack adhesives might leave ghosting marks or remove surface gloss when peeled.
- No. 4 (Brushed) / Dull Finish: These are more forgiving and often require Medium to High Tack films to ensure the film doesn't lift during mechanical stress.
Consider Your Manufacturing Process
- Deep Drawing: You need a high-elongation film that stretches with the metal without tearing.
- Bending/Folding: Medium tack is usually sufficient to prevent the film from lifting at the bend line.
- Outdoor Storage: You must specify UV-stabilized film, or you risk "baked-on" adhesive that requires chemical solvents to remove.
|
Surface Finish |
Recommended Film | Adhesion Level |
| Mirror (8K) | PE 50μm | Low |
| Hairline | PE 60μm | Medium |
| Bead Blasted | PVC 80μm | Medium-High |
| Embossed | PVC 100μm | High |
| PVD Colored | PE 60μm UV-resistant | Low-Medium |
Conclusion
Protective film types for stainless steel sheets are not interchangeable commodities—they directly impact surface quality, fabrication efficiency, and final project success. By understanding film material, adhesive strength, thickness, UV resistance, and removal timing, manufacturers and contractors can significantly reduce damage risk while optimizing cost control.
Choosing the correct protective film ensures stainless steel sheets arrive at installation in flawless condition—preserving both performance and appearance.
