Stainless steel slit coil
Stainless steel slit coil is one of the most widely used forms of stainless steel in modern manufacturing. It is made by taking a wide master coil and cutting it into narrower strips with precise widths. At Aoxing Metal, we have been supplying slit coils to customers around the world for many years, and we have seen how important precision processing is to the final product. This guide explains what slit coils are, how they are produced, what to pay attention to when buying, and how to choose the right supplier.
What Is a Stainless Steel Slit Coil?
A stainless steel slit coil is a coil of stainless steel that has been cut lengthwise from a wider coil into a specific width. The process is called slitting. The resulting product can be supplied as a coil, or it can be further processed into sheets or strips. Slit coils are used in many industries, including automotive, construction, appliances, electronics, and food processing equipment.
The reason slit coils are so popular is simple: manufacturers often need a specific width of stainless steel, not the full width of a master coil. By buying a stainless steel slit coil, they reduce waste, save time, and improve production efficiency. Instead of cutting wide sheets themselves, they can order the exact width they need from a stainless steel slit coil supplier.
The Difference Between Slit Coil and Standard Coil
A standard master coil is usually produced by a steel mill and can be very wide, sometimes over 1,500 mm. A stainless steel slit coil is made by cutting that master coil into narrower widths. The slitting process does not change the material properties of the stainless steel. It only changes the width and the coil shape. This means the thickness, surface finish, and grade remain the same as the original coil.
Why Slitting Is a Precision Process
Slitting may look simple, but it is actually a precision process. The knives must be set correctly, the tension must be controlled, and the edges must be clean. If the slitting is not done properly, the coil can have burrs, camber, or uneven edges. These problems can cause issues in downstream production, such as jamming in stamping machines or poor welding quality. That is why choosing a reliable stainless steel slitting factory is so important.
How Stainless Steel Slitting Works
The slitting process generally follows these steps. Each step affects the final quality of the precision slit coil, so we pay close attention to every detail.
Selecting the Master Coil
The first step is to choose the right master coil. The grade, thickness, width, and surface finish must match the customer's requirements. For example, if the final product is a kitchen sink, the customer may need 304 stainless steel with a No. 4 finish. If the final product is a medical instrument, the customer may need 316L with a bright annealed finish.
Setting Up the Slitting Line
The slitting line is set up with circular knives. The distance between the knives determines the width of the slit strips. The line also includes tension pads, recoilers, and edge guides. The operator must ensure that the knives are sharp and aligned correctly. Any mistake here can affect the whole run.

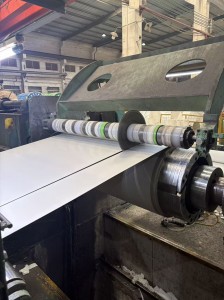

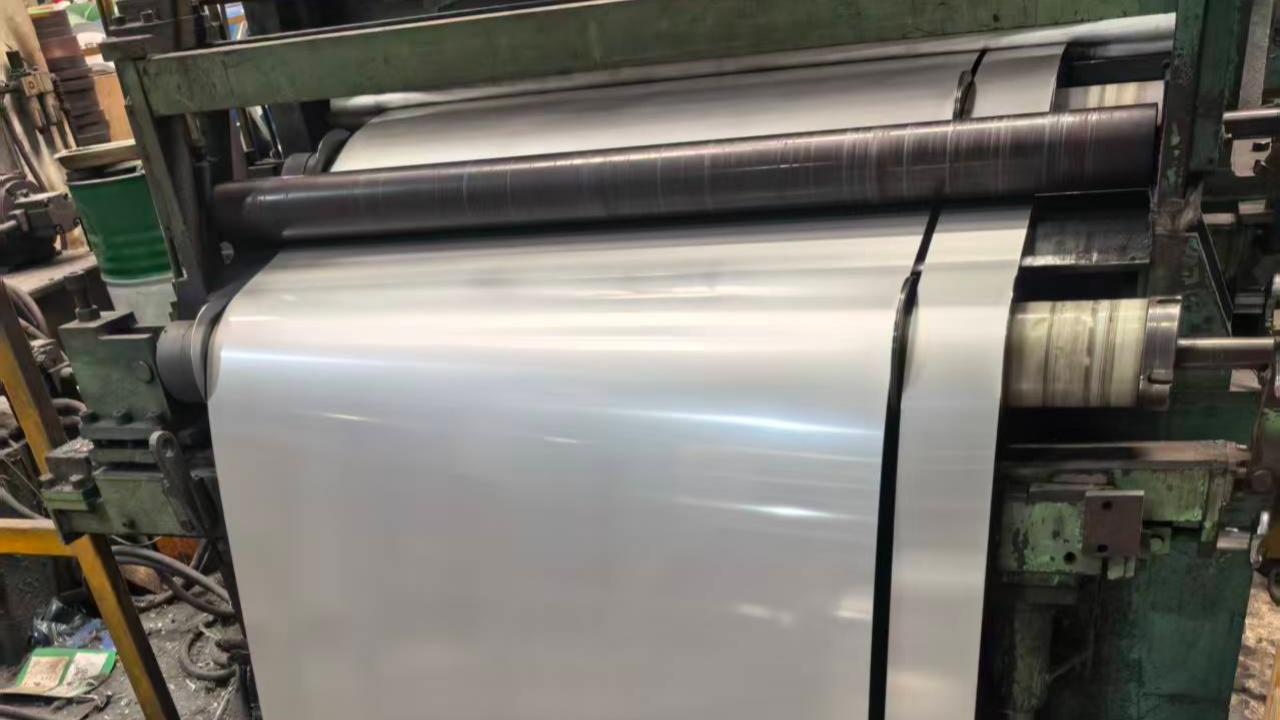

Slitting the Coil
The master coil is uncoiled and fed through the slitting head. The circular knives cut the coil into multiple narrow strips. The strips are then recoiled separately. The speed of the line and the tension must be balanced to avoid scratching or deforming the material.

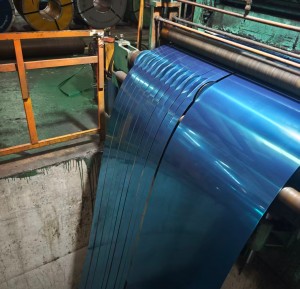

Rewinding and Packaging
After slitting, the narrow coils are rewound into tight, uniform coils. They are then packed with protective materials, such as VCI paper or plastic film, and placed on pallets or in wooden cases. Proper packaging is essential to prevent damage during transportation.
Quality Inspection
Before shipment, every precision slit coil should be inspected. The width, thickness, edge quality, and surface finish are checked. At Aoxing Metal, we also check for burrs and camber. If the customer has special requirements, we can provide inspection reports and mill test certificates.
Key Factors That Affect Slit Coil Quality
Not all slit coils are the same. The quality of a stainless steel slit coil depends on several factors. Understanding these factors helps buyers make better decisions.
Material Grade and Properties
The grade of stainless steel affects corrosion resistance, strength, and formability. Common grades include 304, 316, 316L, 430, 409, and 201. Each grade has different properties. For example, 304 is the most common grade for general use, while 316L is better for marine and chemical environments. The slitting process does not change the grade, so the final slit stainless steel strip will have the same properties as the master coil.
Thickness Tolerance
Thickness tolerance is critical for many applications. If the thickness varies too much, it can cause problems in stamping, bending, or welding.
Width Tolerance
Width tolerance is another important factor. The slitting process should produce strips with consistent width. If the width varies, it can cause problems in automated production lines.
Edge Quality
Edge quality refers to the condition of the cut edges. A good slit edge should be smooth, straight, and free of burrs. Burrs can be dangerous and can also cause problems in downstream processing. There are different edge types, such as mill edge, slit edge, and deburred edge. The customer should choose the right edge type for their application.
Surface Finish
The surface finish of the master coil is preserved during slitting. However, poor handling can cause scratches or marks. That is why proper handling and packaging are so important. Common surface finishes include 2B, BA, No. 4, No. 8, and HL. Each finish has a different appearance and is suitable for different applications.
FAQ About Stainless Steel Slit Coil
1.What is a stainless steel slit coil?
A stainless steel slit coil is a coil of stainless steel that has been cut lengthwise from a wider master coil into a specific width. It is used in many industries for different applications.
2.What is the difference between a slit coil and a strip?
A slit stainless steel strip is usually a flat product with a specific width and thickness. A slit coil is the same material but supplied in coil form.
3.What grades are available for slit coils?
Common grades include 304, 316, 316L, 430, 409, and 201. The choice depends on the application and the required corrosion resistance, strength, and formability.
4.What is the minimum order quantity?
The minimum order quantity depends on the grade, thickness, and width. At Aoxing Metal, we try to be flexible. Please contact us with your specific requirements.
5.Do you provide samples?
Yes, we can provide samples for quality evaluation.
6.What is the width tolerance?
Common tolerances are ±0.05 mm to ±0.10 mm. We can discuss your specific requirements.
7.What is the lead time?
The lead time depends on the quantity and the specific requirements. Usually, it is between 15 and 30 days after deposit.
8.How do you pack the coils?
We pack the coils with lining paper or PVC film and place them on wooden pallets or in wooden cases.
