A Technical Standard for Precision
Surface roughness (Ra) serves as the critical metric for defining the microscopic topography of stainless steel, directly influencing its corrosion resistance, hygienic properties, and aesthetic consistency across industrial applications.
What is Ra?

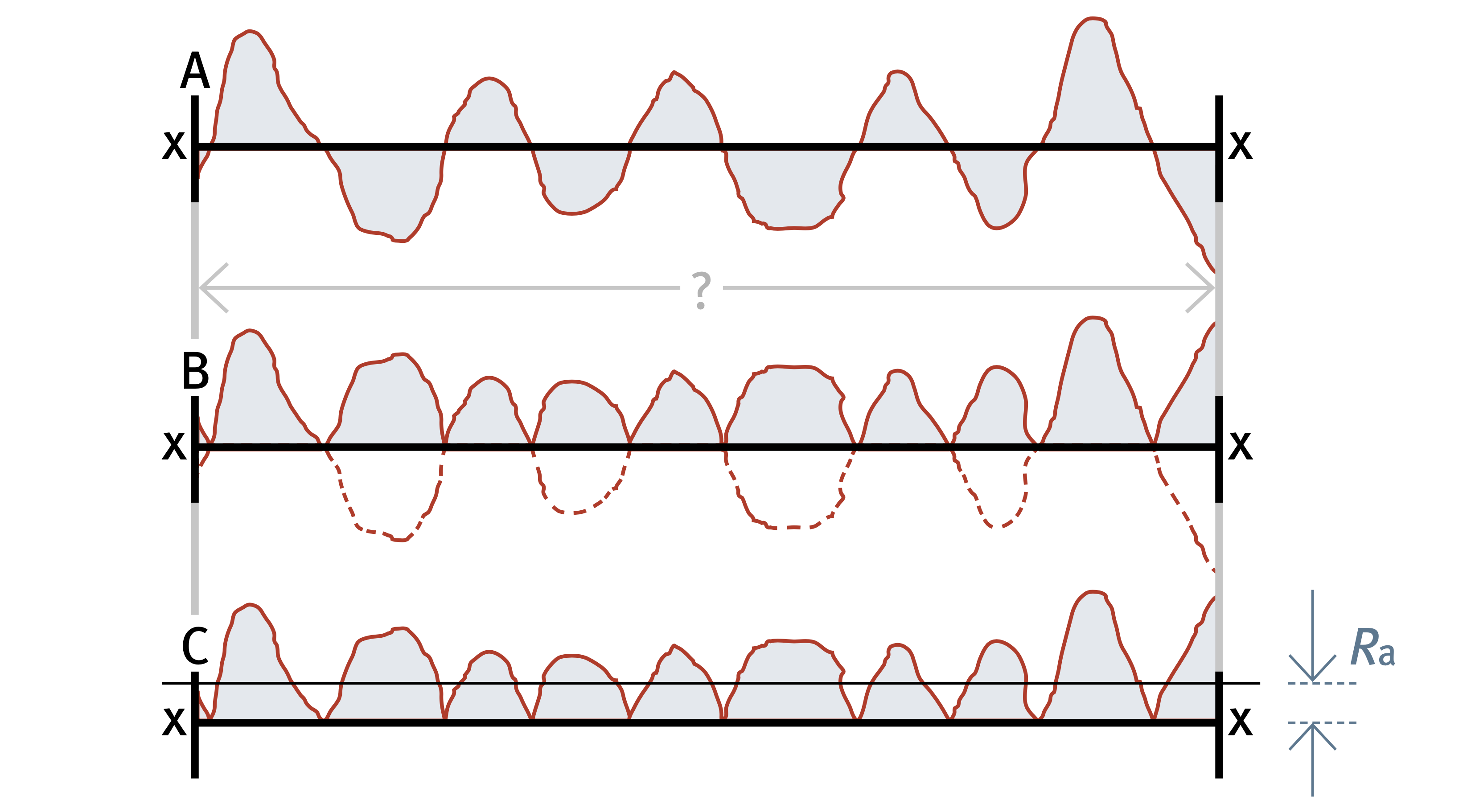

In metallurgy and precision engineering, "smoothness" is not a subjective observation; it is a mathematical calculation. Surface roughness (Ra) is the arithmetic average of the absolute values of the profile height deviations from the mean line recorded within the evaluation length.
The Arithmetic Mean
Mathematically, Ra is represented as:
Where y represents the vertical distance from the mean line to the profile at each point. While other metrics like Rz (mean peak-to-valley height) or Rq (root mean square) provide additional detail, Ra remains the global industry standard for specifying stainless steel finishes.
Typical Ra Values by Finish

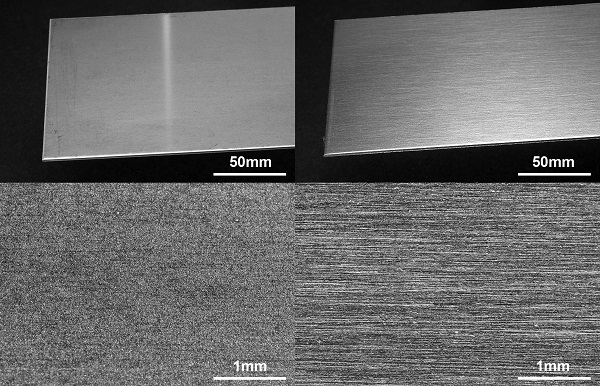

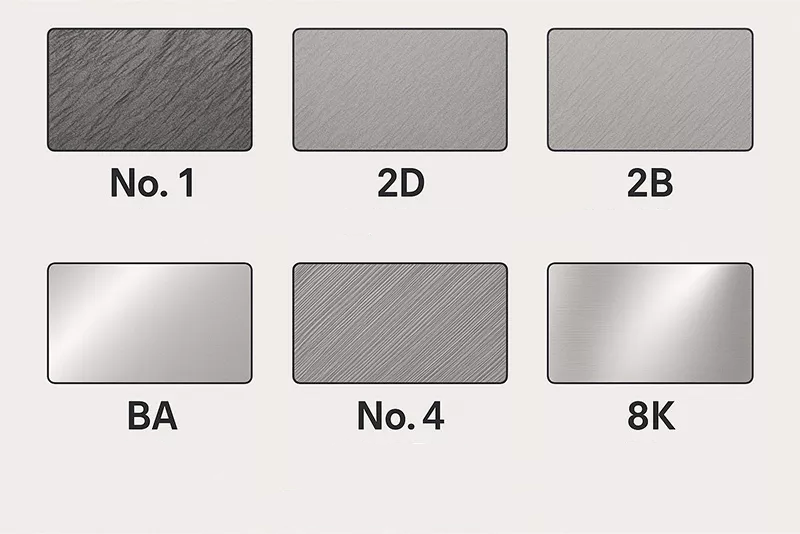

The stainless steel industry uses standardized finish designations (e.g., No. 4, No. 8), but these are ranges rather than exact points. To ensure precision, engineers specify maximum Ra values.
| Finish Designation | Common Name | Typical Ra Range (μm) | Typical Ra Range (μin) |
| No. 2B | Cold Rolled, Pickled | 0.1 – 0.5 | 4 – 20 |
| No. 3 | Coarse Abrasive | 0.6 – 1.0 | 25 – 40 |
| No. 4 | Brushed / Satin | 0.4 – 0.8 | 15 – 30 |
| No. 8 | Mirror Polished | < 0.05 | < 2 |
| Electropolished | EP Finish | 0.1 – 0.3 | 4 – 12 |
For perspective, a human hair is approximately 70μm thick. A high-purity pharmaceutical pipe often requires an internal Ra of less than 0.5μm, meaning the surface "peaks" are 140 times smaller than the thickness of a hair.
Why Roughness Affects Lifespan
There is a direct, data-backed correlation between higher surface roughness and faster corrosion rates. This is particularly true in chloride-rich or "salty" environments.
The "Micro-Trap" Effect
A rougher surface (Ra > 0.8μm) contains microscopic "valleys" that act as accumulation points for:
- Chloride Ions: These trigger pitting corrosion.
- Moisture: This facilitates the electrolytic reaction needed for rust.
- Contaminants: Free iron or organic matter can "seed" oxidation.
Data from salt spray testing indicates that a mirror-polished sample (Ra < 0.05μm) can last up to 5 times longer in a saline environment before showing signs of "tea staining" compared to a standard No. 4 brushed finish.
Hygiene and Cleanability
In the food and pharmaceutical industries, surface roughness is a matter of public safety. This is governed by standards such as 3-A Sanitary Standards or ASME BPE.
Biofilm Prevention
Bacteria range in size from 0.5 to 5.0μm. If a stainless steel surface has an Ra of 1.0μm, the surface features are large enough to "hide" bacteria from cleaning agents and mechanical scrubbing.
- The 0.8μm Rule: Most sanitary standards mandate a maximum Ra of 0.8μm (32μin). At this level, the surface is considered "cleanable" because the valleys are smaller than the typical bacterial colony.
- Biofilms: When bacteria settle in surface valleys, they create a protective matrix called a biofilm, which can be 1,000 times more resistant to antibiotics and disinfectants than free-floating bacteria.
Tools and Techniques
Achieving a specific Ra value requires precise measurement. The most common tool is the Stylus Profilometer.
How Measurement Works
- Diamond Stylus: A microscopic diamond tip (usually with a radius of 2 or 5μm) is dragged across the surface at a constant speed.
- Transducer: The vertical movement is converted into an electrical signal.
- Cut-off Length: To ensure accuracy, the device ignores very large "waves" in the metal and focuses only on the fine "roughness."
Non-Contact Methods: In modern high-tech facilities, Laser Confocal Microscopy or White Light Interferometry are used to measure Ra without touching the surface, preventing scratches on sensitive mirror finishes.
Mechanical vs. Chemical
Fabricators must choose the most cost-effective method to reach a target Ra.
Abrasive Polishing
This is a subtractive process using belts or wheels.

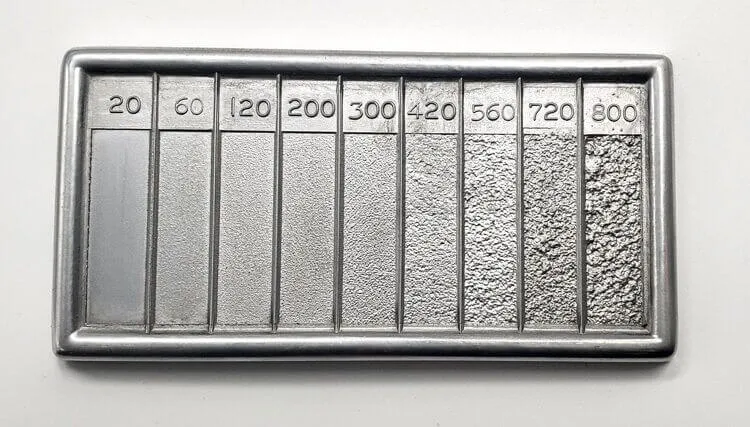

- Grit vs. Ra: There is no 1:1 conversion between sandpaper grit and Ra. However, generally, a 240-grit belt will produce an Ra of roughly 0.4 – 0.6μm.
- The Risk of Overheating: If the belt is worn or the pressure is too high, the surface "smears," trapping contaminants under a layer of metal. This results in a low Ra reading but poor corrosion resistance.
Electropolishing (EP)
Electropolishing is a "reverse plating" process that uses an acid bath and electrical current to dissolve the "peaks" of the surface profile.
- Improvement Ratio: EP can typically improve a mechanical Ra by 30% to 50%.
- Feature Smoothing: Unlike mechanical polishing, EP rounds off the sharp corners of the micro-valleys, significantly increasing the "cleanability" even if the Ra number remains the same.
Strategic Recommendations for Engineers
When specifying Ra for your next project, consider these data-driven guidelines:
- Don't Over-Specify: Moving from an Ra 0.8 to an Ra 0.4 can increase the polishing cost by 100% or more. Only specify the smoothness your application actually requires.
- Specify the Direction: For brushed finishes, the Ra should be measured perpendicular to the grain for the most accurate "worst-case" reading.
- Consider Rz: For high-pressure seals or vacuum gaskets, Ra alone is not enough. You should also specify Rz (Maximum Height of Profile) to ensure no single deep scratch will cause a leak.
Conclusion
Surface roughness (Ra) is the bridge between a raw slab of steel and a high-performance industrial component. Whether it is ensuring that a surgical tool is free of pathogens or that a coastal handrail survives a decade of salt spray, the Ra value provides the empirical evidence of quality.
