At the core of stainless steel selection lies a fundamental manufacturing distinction: Hot Rolled (HR) and Cold Rolled (CR). While they can originate from the same base alloy, these processes impart drastically different properties, making each suitable for unique applications. Choosing correctly is vital for the performance, cost-effectiveness, and longevity of your project.
How Temperature Defines the HR and CR stainless steel
The essential difference between HR and CR stainless steel is the temperature at which the final forming occurs. This single factor dictates nearly all subsequent characteristics.The essential difference between HR and CR stainless steel is the temperature at which the final forming occurs. This single factor dictates nearly all subsequent characteristics.

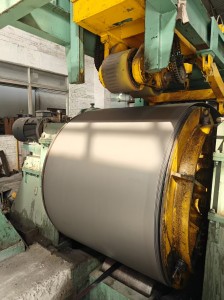

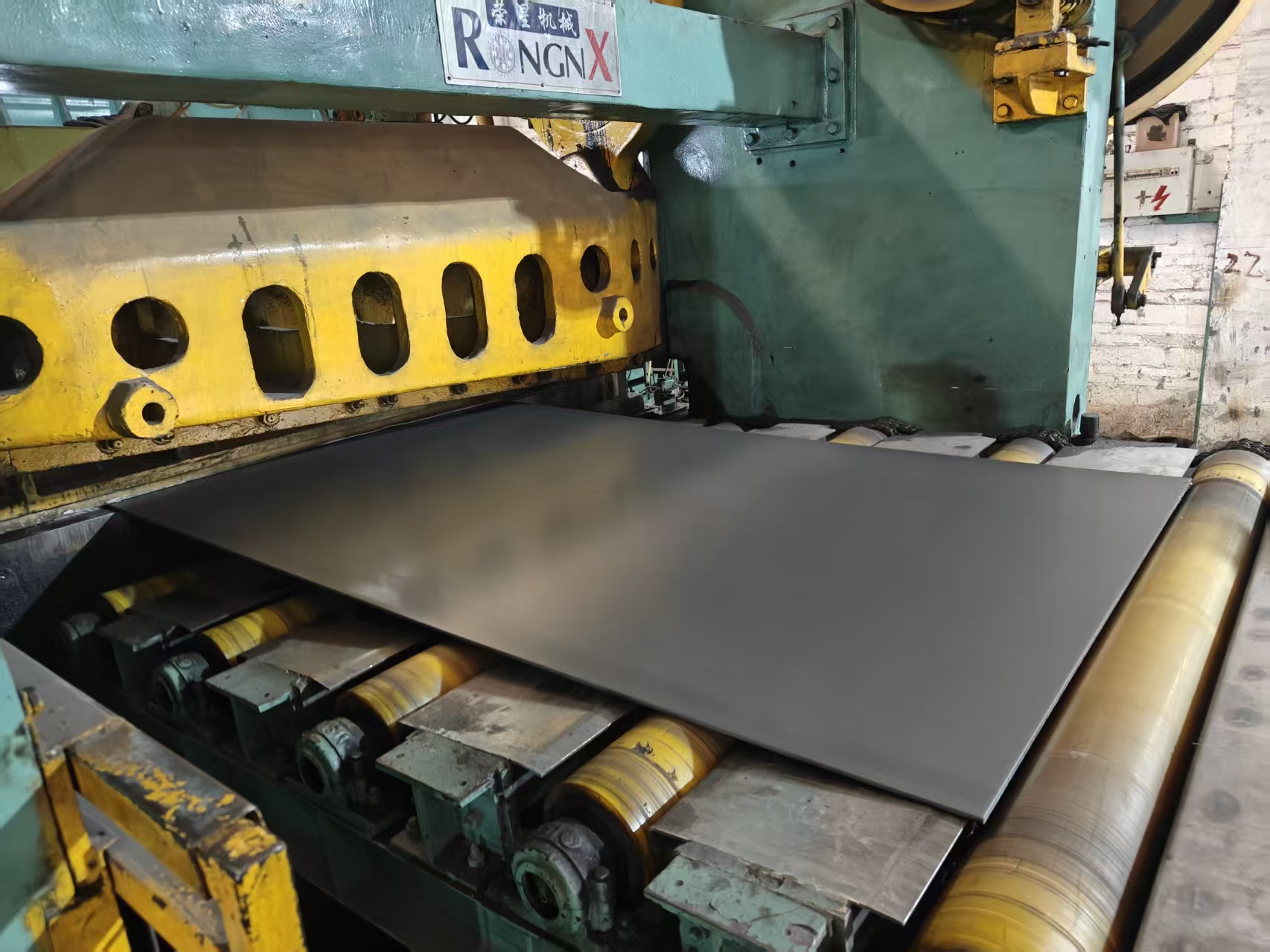

Hot Rolling involves processing stainless steel slabs at extremely high temperatures, typically above 1700°F (927°C), which is well above the material's recrystallization point. This makes the steel soft and malleable, allowing it to be easily shaped into large plates, sheets, or structural shapes.

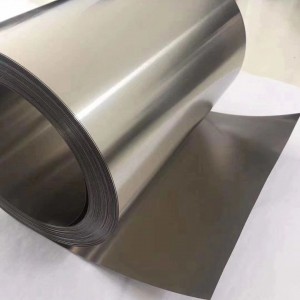

Cold Rolling begins with a hot-rolled steel coil. This coil is then further processed at or near room temperature. It is pickled to remove scale, then passed through rollers that compress and thin the material without applied heat. This is often followed by annealing (heat treatment) and temper rolling to achieve specific mechanical properties.
The comparative properties: HR vs. CR stainless steel
| Feature | HR Stainless Steel | CR Stainless Steel |
| Processing | Rolled above recrystallization temp (≥1100°C) | Rolled at room temperature from HR stock |
| Finish | Rough, with a characteristic mill scale; may have slight imperfections | Smooth, polished, and often very shiny; excellent for visible surfaces |
| Dimensional Precision | Lower precision; tolerances are wider due to shrinkage during cooling | High precision; maintains tight tolerances and sharp edges |
| Mechanical Strength | Good standard strength and high toughness | Higher strength and hardness (can be up to ~20% stronger due to work hardening) |
| Internal Stress | Low internal stress due to gradual cooling | Higher internal stress from cold working; may require stress relief |
| Formability | Excellent ductility and formability at high temperatures | Good formability, though harder than HR; suitable for precise bending |
| Typical Cost | Generally more cost-effective due to simpler process | Higher cost due to additional processing steps |
Choosing the right material for your application
The choice between HR and CR is not about which is "better," but which is more suitable for your specific end use.
Choose Hot Rolled (HR) Stainless Steel when:
Application: The part is structural or will not be visible. Common uses include structural beams, industrial machinery frames, railway components, and pressure vessels.
Priority: Your primary needs are cost-efficiency, high toughness, and the ability to withstand heavy loads without requiring a pristine surface finish.
Forming: You require material that needs significant shaping or welding where surface scale is not a concern.
Choose Cold Rolled (CR) Stainless Steel when:
Application: The part requires a fine finish or precise dimensions. It is preferred for appliances, kitchen equipment, automotive trim, architectural panels, and furniture.
Priority: Aesthetic appeal, tight dimensional tolerances, superior surface smoothness, and enhanced strength are critical to the product's function and value.
Forming: You are engaged in precision fabrication like deep drawing, stamping, or bending where consistent material thickness is essential.
