What Is Work Hardening in Stainless Steel?
Work hardening, also called strain hardening, is the increase in strength and hardness that occurs when stainless steel undergoes plastic deformation such as cold rolling, bending, stamping, or deep drawing.
From a metallurgical perspective, work hardening results from:
- Increased dislocation density
- Restricted atomic movement
- Elevated resistance to further deformation
This phenomenon is especially pronounced in austenitic stainless steels.
Quantifying Work Hardening: Measurable Property Changes
Work hardening produces measurable increases in mechanical properties:

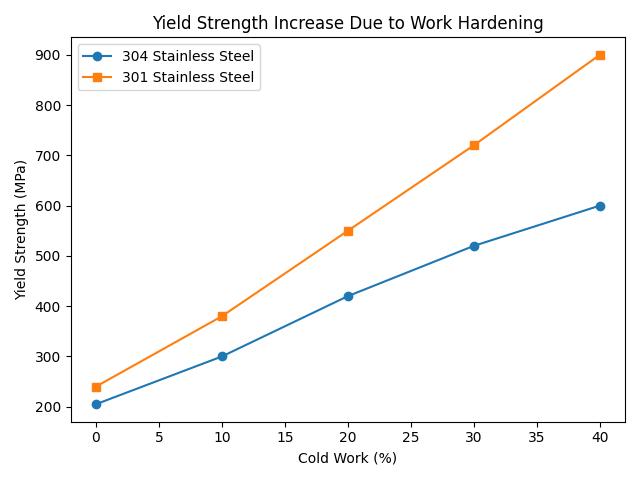

| Property | Annealed 304 | Cold-Worked 304 (≈30%) |
| Yield Strength | ~205 MPa | 450–600 MPa |
| Tensile Strength | ~515 MPa | 750–900 MPa |
| Hardness | ~80 HRB | 95–105 HRB |
| Elongation | ~45% | 20–25% |
➡ Key insight: strength can increase by 100–200%, while ductility may drop by 40–60%.
Primary Causes of Work Hardening
① Crystal Structure (Most Critical Factor)
Austenitic stainless steel has a face-centered cubic (FCC) structure, which allows extensive dislocation movement—leading to high work-hardening rates.
② Alloy Composition
- Nickel (Ni): stabilizes austenite, increases work-hardening potential
- Nitrogen (N): raises yield strength and accelerates strain hardening
③ Degree of Cold Deformation
Higher strain → faster hardening
- 10% cold work → moderate strengthening
- 30–50% cold work → sharp increase in forming resistance
④ Processing Temperature
Lower temperatures increase work hardening due to reduced atomic mobility.
Work Hardening Rates by Stainless Steel Grade
Different grades exhibit significantly different work-hardening behavior:
| Grade | Work-Hardening Rate | Typical Use |
| 301 | Very High | Springs, clips |
| 304 | High | General forming |
| 316L | High | Corrosion-critical forming |
| 305 | Low | Deep drawing |
| 430 | Low | Flat decorative panels |
➡ Engineering takeaway: grade selection directly impacts tool wear, forming force, and scrap rate.
Effects of Work Hardening on Manufacturing
Positive Effects
- Increased load-bearing capacity
- Improved wear resistance
- Enables high-strength thin sections
Negative Effects
- Higher forming force requirements (↑ 30–80%)
- Reduced bendability and draw depth
- Increased risk of edge cracking
- Accelerated tool wear and energy consumption
Industrial Examples
- 301 stainless steel can reach >1400 MPa tensile strength after heavy cold work
- 304 stainless steel sheets require intermediate annealing after deep drawing
- Cold-rolled strips show 2–3× higher yield strength than hot-rolled equivalents
Managing and Controlling Work Hardening
● Intermediate Annealing
Restores ductility by recrystallization and stress relief.
● Optimized Forming Design
- Larger bend radius
- Multi-step forming instead of single heavy deformation
● Proper Grade Selection
- Use 305 for deep drawing
- Use 301 where strength is required
- Use 430 for low-hardening decorative panels
Work Hardening vs Heat Treatment
|
Factor |
Work Hardening | Heat Treatment |
| Strength Increase | Yes | Yes |
| Ductility | Decreases | Can increase |
| Control Precision | Process-dependent | High |
| Typical Use | Cold forming | Property recovery |
Conclusion
Work hardening in stainless steel is a predictable, measurable phenomenon that significantly alters mechanical performance during cold processing. While it enables higher strength and structural efficiency, uncontrolled work hardening increases forming difficulty and production cost. Understanding its causes, effects, and data-driven behavior allows manufacturers to optimize grade selection, processing strategy, and final product performance.
Post time: Jan-04-2026
