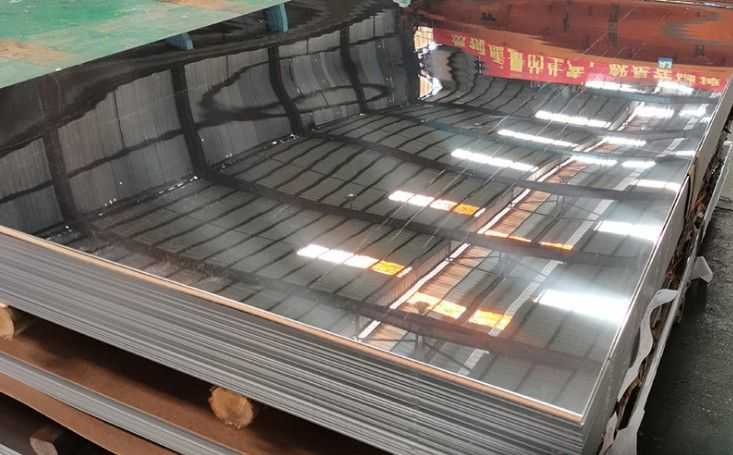

430 Stainless Steel
When selecting a material for appliance manufacturing, automotive components, or kitchenware, understanding 430 stainless steel properties is essential for making an informed decision. Grade 430 is a widely used ferritic stainless steel that belongs to the 400 series family, known for its excellent balance of performance and cost-effectiveness. Unlike the more commonly known 304 austenitic grade, 430 offers unique characteristics that make it the material of choice for specific applications. This comprehensive stainless steel guide explores everything you need to know about this versatile alloy—from its chemical composition and mechanical behavior to its practical advantages and inherent limitations.
What is 430 stainless steel?
Grade 430 stainless steel is a non-hardenable, straight-chromium ferritic alloy containing approximately 16-18% chromium and very low nickel content (0.5% maximum)-11. The balance is primarily iron, with small amounts of carbon, manganese, and silicon. As a ferritic stainless steel, it possesses a body-centered cubic crystal structure, which distinguishes it from the austenitic grades like 304.
One of the most notable characteristics of grade 430 is its magnetic nature. Unlike austenitic stainless steels such as 304 or 316, 430 is a magnetic stainless steel due to its ferritic microstructure. This property is particularly advantageous in applications requiring magnetic responsiveness, such as magnetic catches, electromagnetic core assemblies, and certain automotive sensors
Chemical composition of 430 stainless steel
The 430 material specification defines a precise chemical composition that delivers consistent performance across various applications.
| Element | Percentage (%) | Function |
| Chromium (Cr) | 16.0 - 18.0 | Primary corrosion resistance element |
| Nickel (Ni) | 0.5 max | Limited addition; contributes to formability |
| Carbon (C) | 0.12 max | Increases strength but affects weldability |
| Manganese (Mn) | 1.0 max | Deoxidizer and strengthens the alloy |
| Silicon (Si) | 1.0 max | Improves oxidation resistance |
| Phosphorus (P) | 0.04 max | Trace element |
| Sulfur (S) | 0.03 max | Trace element |
| Iron (Fe) | Balance | Base metal |
Mechanical Properties of 430 Stainless Steel
Understanding the mechanical behavior of grade 430 is essential for engineering and design decisions. The following table summarizes the key mechanical properties.
| Property | Value |
| Tensile Strength (min) | 483 MPa |
| Yield Strength 0.2% Proof (min) | 310 MPa |
| Elongation (% in 50mm) | 22% |
| Hardness | 183 HB max |
| Density | 7.75 g/cm³ |
| Thermal Conductivity (at 100°C) | 26.1 W/m·K |
Physical Properties of 430 stainless steel
Grade 430 exhibits several notable physical characteristics:
- Magnetic: The material demonstrates ferromagnetic behavior, making it suitable for applications where magnetic properties are beneficial.
- Density: At approximately 7.75 g/cm³, it is slightly lighter than austenitic grades (which typically measure around 8.0 g/cm³).
- Thermal Expansion: The coefficient of thermal expansion is approximately 10.4 μm/m·°C, lower than that of austenitic stainless steels, which means better dimensional stability under temperature changes.
- Thermal Conductivity: With a value of 26.1 W/m·K, grade 430 conducts heat better than austenitic grades, an advantage in heat exchangers and cooking equipment.
Advantages of 430 Stainless Steel
Cost-Effectiveness
The absence of significant nickel content makes grade 430 considerably less expensive than austenitic grades such as 304 or 316. In many applications, grade 430 can cost anywhere between 55% and 75% of the price of grade 304. This cost advantage is a primary driver for its widespread use in consumer appliances and automotive components where budget considerations are paramount.
Good Corrosion Resistance
For mild to moderately corrosive environments, the corrosion resistance of 430 is entirely satisfactory. This grade exhibits good resistance to:
- Atmospheric corrosion
- Organic acids
- Nitric acid
- Freshwater exposure
- Mild oxidizing environments
Magnetic Properties
The magnetic stainless steel nature of grade 430 makes it indispensable for specific applications. It is used in magnetic core assemblies, electromagnetic equipment, and components that require magnetic responsiveness. Unlike austenitic grades, which are non-magnetic or weakly magnetic, 430 maintains its magnetic properties under normal service conditions.
Excellent Formability
Grade 430 exhibits good formability and does not work-harden as rapidly as austenitic grades. This characteristic is particularly beneficial in manufacturing processes involving deep drawing,bending,stretch forming and spinning.
Oxidation Resistance at Elevated Temperatures
Grade 430 offers good resistance to scaling and oxidation up to approximately 815-870°C, making it suitable for applications such as furnace parts, heat exchangers, and automotive exhaust components that experience elevated operating temperatures.
Limitations of 430 Stainless Steel
In addition to the aforementioned advantages, 430 stainless steel also has its own limitations.
Reduced Corrosion Resistance Compared to Austenitic Grades
While the corrosion resistance of 430 is adequate for mild environments, it does not match the performance of 304 or 316 stainless steel. In highly corrosive environments—such as those involving chlorides, seawater, strong acids, or industrial pollutants—430 can suffer from pitting and crevice corrosion. This limitation is primarily due to the absence of nickel, which in austenitic grades enhances resistance to acidic and chloride-containing media.
Poor Weldability
Grade 430 has limited weldability compared to austenitic grades. The higher carbon content combined with the lack of stabilizing elements such as titanium or niobium can lead to:
- Grain growth in the heat-affected zone
- Loss of ductility and toughness after welding
- Reduced corrosion resistance in welded areas
Lower Toughness and Ductility
The ferritic stainless steel properties of grade 430 include relatively lower ductility and toughness compared to austenitic grades. This can result in:
- Susceptibility to brittleness at temperatures below approximately 0°C
- Reduced impact resistance
- Challenges in severe forming operations
Machinability Considerations
While grade 430 has better machinability than many austenitic grades due to its ferritic structure, it is still considered to have only fair machinability in the annealed condition. This is because the material tends to produce continuous chips and has a tendency to build up on cutting tools.
Key Applications of 430 Stainless Steel
430 stainless steel is widely used in various fields.
Household Appliances
As appliance grade stainless steel, 430 is extensively used in:Refrigerator cabinet panels and door faces,Dishwasher linings,Washing machine components and Microwave oven cavities.
Automotive Industry
The automotive sector uses grade 430 for:Exhaust system components,Automotive trim and decorative moldings,Muffler systems and Heat shields.
Industrial Equipment
In industrial settings, 430 finds applications in:Heat exchangers,Chemical equipment for mild environments,Flue linings and Industrial roofing and wall cladding.
Architectural and Decorative
The material's aesthetic appeal and cost-efficiency make it suitable for:Elevator panels,Architectural trim,Decorative fixtures and Furniture components.
Frequently Asked Questions About 430 Stainless Steel
1.Is 430 stainless steel magnetic?
Yes, 430 is a magnetic stainless steel because it has a ferritic structure. This makes it suitable for applications such as magnetic catches and electromagnetic components.
2.Can 430 stainless steel be welded?
Yes, but it requires careful pre-heating and post-weld annealing to prevent embrittlement and maintain corrosion resistance.
3.What is the difference between 430 and 304 stainless steel?
The main differences are that 430 contains virtually no nickel, is magnetic, has lower corrosion resistance, is more affordable, and has limited weldability compared to 304.
4.What are common applications for 430 stainless steel?
Typical uses include refrigerator panels, dishwasher linings, automotive trim, heat exchangers, and stove components.
5. What is the MOQ of 430 stainless steel?
We can provide as you need.
6. What is the leading time?
It is usually take 25-30 days.
7.What is the maximum service temperature for 430 stainless steel?
Grade 430 can withstand intermittent service up to approximately 850°C and offers good oxidation resistance up to about 815-870°C.
8.Can I get the samples?
Of course. We can share samples for free.
